30W / 50W / 70W

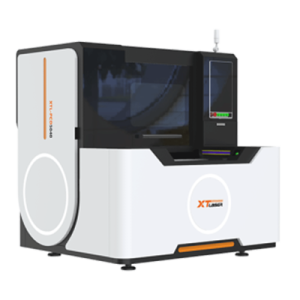

The ultra-fast picosecond glass laser cutting machine adopts easy-to-control non-contact andlow-pollution technology to achieve high-precision cutting
| Machine model | XTL-PC5050 |
| Laser source power | 30W 50W 70W |
| Machine structure | X,Y,Z Marble Table |
| Max. stroke | 1500mm*1620mm*1880mm |
| CCD Vision positioning accuracy | ±3um |
| Laser source wavelength | 1064nm |

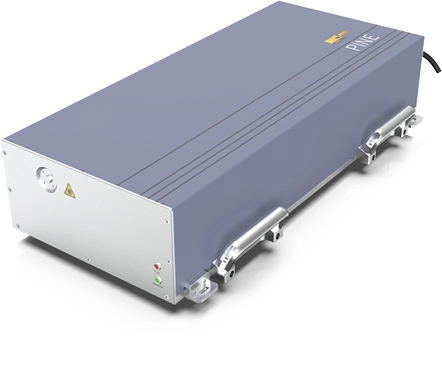

Adopted Picosecond IR Ultra-fast Lasers are robust and affordable, it produces high energy pulses with durations below 10 ps. The laser is based on a hybrid optical amplier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass ampliers. Compact and water-cooled, this laser is low maintenance and never needs realignment. With burst mode optional, it could be suitable for variety applications with low cost!

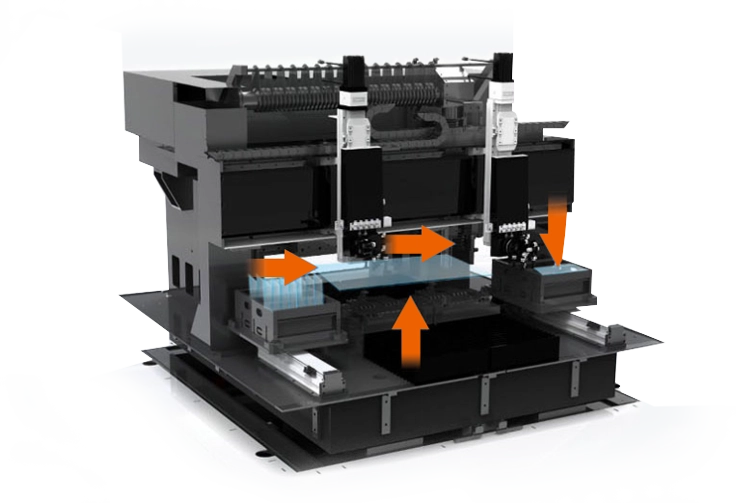

and unloading structure
Dual-platform processing saves loading and unloading time.
For materials with relatively simple cutting patterns, the asynchronous loading and unloading structure can double the
processing capacity.
The whole set of equipment realizes the highly integrated glass material from the material frame reclaiming to the laser cutting and the cutting down to the material frame, which can realize the unmanned operation of the whole process.
Adopt linear motor, imported digital grating ruler, makes the machine with high precision.

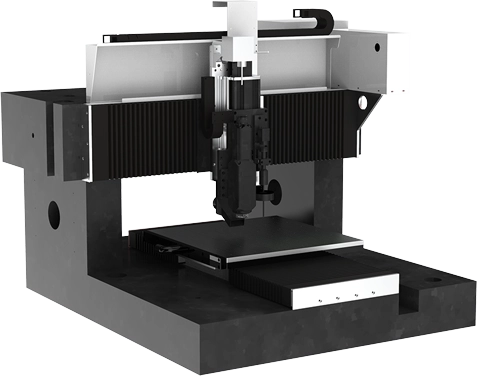

Gantry structure and marble working table, twice grinding process, high precision and stability.

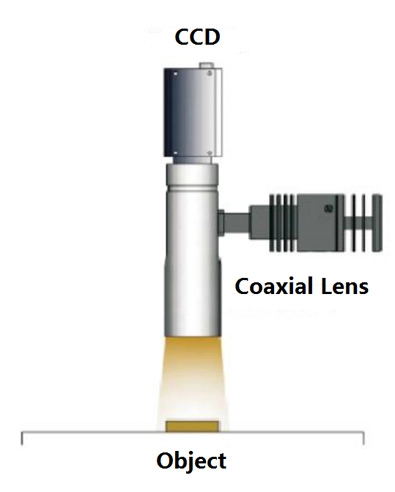

Equipped with CCD vision scanning, automatic target positioning, offset correction compensation, unlimited correction, the maximum processing range is 750mm×550mm.
Support a variety of visual positioning features
such as crosses, solid circles, hollow circles, L-shaped right-angle edges, image feature points, etc.
Stable performance,
no consumables
Pso control is used for cutting
um-level precision,
path and control are synchronized to achieve “abnormal cutting”
Glass cutting,coated lens, LCD material cutting,
sapphire cutting, automotive central control glass, displace screen

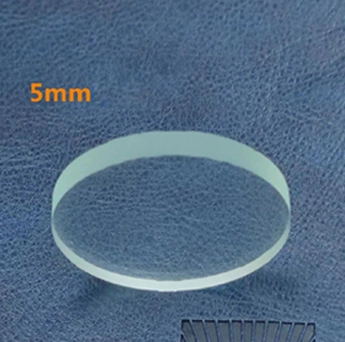

Glass Cutting

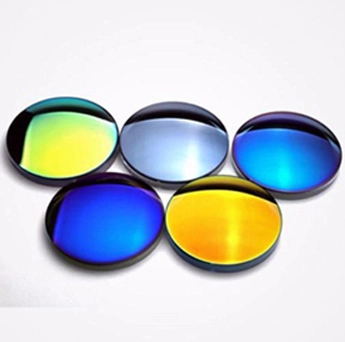

Coated lenses
LCD material
Blue diamond
Automobile Display Glass
Home Appliance Display Glass
