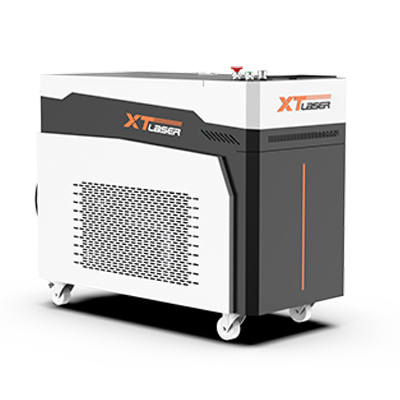

Handheld Fiber Laser Welding Machine
1500W-3000W
- Compact design,Easy to Move Stronger Welding Strength
- Higher Efficiency and Lower Maintenance Costs Wire Feeder is a Standard Tool
- Eyecatching Advantages Eco-friendly Welding, No Pollution
Product Parameters
| Laser Power | 1000W | 1500W | 2000W |
| Total Power/current of the Whole Machine | 5500W/25A | 7000W/32A | 9500W/25A |
| Cabinet Dimensions（2000W） | 1186*624*829mm | 1186*624*829mm | 1186*624*829mm |
| Weld penetration | 3mm | 4mm | 5mm |
| Fiber length | 10m | ||
| Laser frequency | 50-20KHz | ||
| Cooling Method | Water Cooling | ||

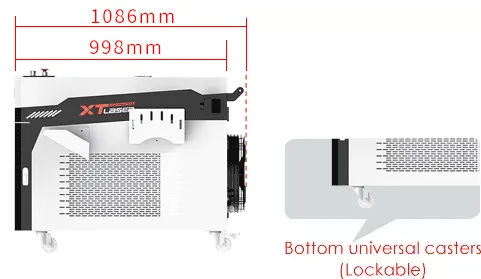

Compact design,Easy to Move
Machine is integrated and less floorspace occupation
10m optical fiber cable enables long-distance welding
Bottom universal wheels help useres to move machine easily
Stronger Welding Strength
Welding routes are solid and smooth under mode of continuous laser.
Little deformation and tiny bulge
Less or No need polishing,saving labor and time costs
More Efficiency and Lower Maintenance Costs
The electro-optical conversion rate is as high as above 45%, which is 15 times
higher than solid YAG laser (3%), and its power stability is ±0.5%.
Laser source lifespan can last for over 100000h, basically maintenance-free.

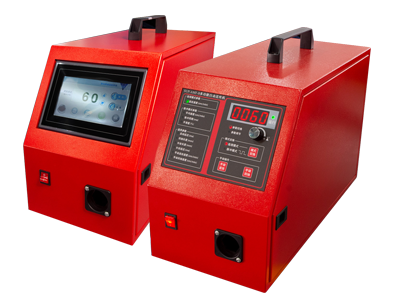

Wire Feeder is a Standard Tool
Dual-driven wire feeder
XT LASER offer a wire feeder as standard part for every client,help them get higher welding quality

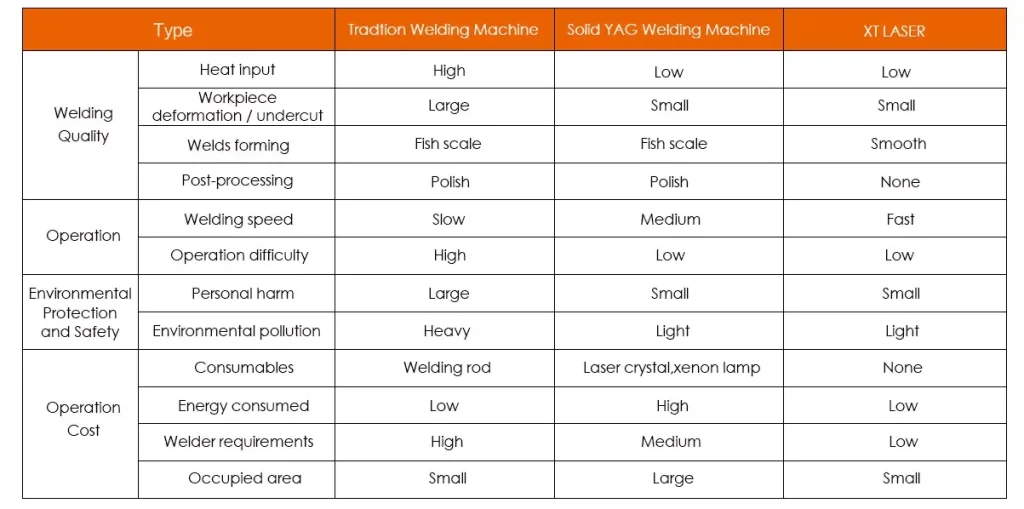

Eyecatching Advantages
Temperature
Sensor
Adjustable
laser mode
0 welding experience required
1 day to start using
Welding Samples
Video
