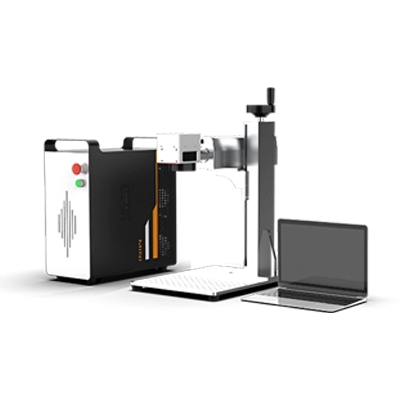

Mini Type Fiber Laser Marking Machine
20W/30W/50W/100W
20W/30W/50W/100W
- Excellent beam quality
- Laser long service life
- Small and exquisite Volume
- Free maintenance operation
Product Parameters
| Model | 2D | 3D |
| Laser Power | 20W-100W | |
| Working Area | 70-300mm | 70-300mm |
| Overall Dimensions | 550*1050*670mm | 550*1050*670mm |
| Machine Weight | 48kg | 60kg |
| Marking Speed | ≤4000mm/s | ≤6000mm/s |
| Resolution | 15μRad | 12μRad |
| Repeatability | 8μRad | 8μRad |
| Input Aperture | 10mm | 10mm |
| Frequency | ≤900Hz | ≤1000Hz |
Machine Details
Forward
45 degrees behind
Rear
High Quality Parts
Raycus laser source the best quality in China
Protective glasses protect the eyes
Raycus laser source the best quality in China
Outside red pointer
Rotary axis
JCZ original version of EZCAD software
Marking Samples
Marking Samples
