Three-Axis Fiber Laser Welding Machine
1000W-2000W
- Low energy consumption
- High precision
- Long-life laser source
- Laser output through fiber
Product Parameters
| Laser Power | 1000W | 1500W | 2000W |
|---|---|---|---|
| Total Power/current of the Whole Machine | 6.6kW/30A | 8.8kW/40A | 10.6kW/28A |
| Penetration (SS) | 2.8mm | 4mm | 5.2mm |
| Penetration (CS) | 2.7mm | 4mm | 5mm |
| Penetration (Aluminum Alloy) | 2.2mm | 3.3mm | 4.2mm |
| Machine Weight | 470kg | 470kg | 520kg |
| Cabinet Dimensions | 880x1100x750mm | 880x1100x750mm | 1000x1250x750mm |
| Working Temperature | 10°C-40°C | ||
| Laser Frequency | 50-20KHz | ||
| Cooling Method | Water Cooling | ||
Compact size,Easy to Move
Adopts 1000w, 1500w, 2000w fiber laser source, which has high elector-optical conversion efficiency and long laser life.
Welding firm / Smooth and flat
High laser beam quality, welding speed, which is 5 times more than speed of the traditional
optical fiber transmission laser welding machine;
Fine weld, small taper, high precision, can fully meet the needs of users in different industries;
The welding is firm, Smooth and flat.
High stability
The whole machine has low energy consumption,
maintenance-free, high stability,
and long-term use can save users a lot of processing costs.
Wide range of applications
It can be time splitting or energy splitting, suitable for different processing applications,
support both continuous welding and spot welding.

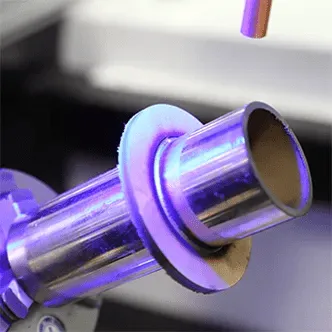

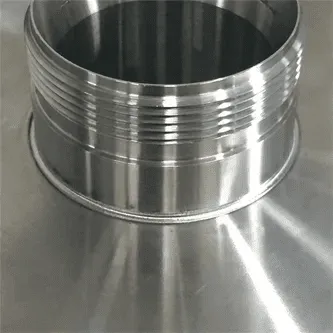

Welding Samples
